California Technical Specifications
- Full vision door
- Thickness: 1 ¾"
- Aluminum frame
- Dura+ hardware ?
- Widths from 8’ to 18’, in 1” increments.
- Heights from 6’6” to 8’, in 1” increments.
Please contact us for more details on oversized doors available.
†Semi-custom colour doors are coated with an acrylic resin-based liquid painting.
The accuracy of colours on the website may vary depending on your screen settings. To see the true colours, please contact your local Garaga dealer for a sample.
8' to 9'3"
9'4" to 12'3"
12'4" to 18'
No vertical stile Maximum width of 9'2". Available only in Thermopane windows.
One vertical stile installed at a third of the width. Maximum width of 10'.
One vertical stile installed at the center. Maximum width of 14'2".
Layout with more openings than the common layouts. Always equal width openings.

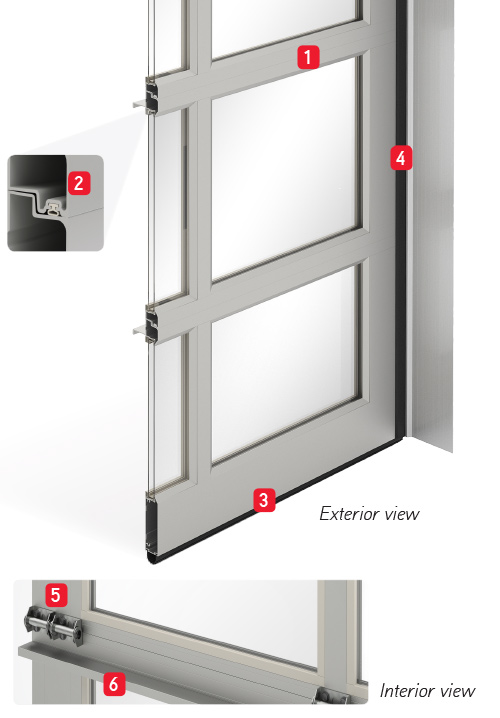

Garaga construction makes all the difference
|1 ¾” (44.5 mm) thick door
|Weatherstripping between sections efficiently prevents air infiltration.|
|U-shaped tubular bottom weatherstripping made of thermoplastic elastomer (TPE) ensures the weathertightness of the threshold Remains flexible and watertight during cold weather, to -62°F (-52°C).|
|Perimeter weatherstripping (jambs and lintel) Aluminum extrusion base with double-edge weatherstripping in arctic vinyl.|
|Hinges equally spaced on the door for a better look.|
|Integral reinforcement strut for doors 14’ (4267 mm) wide and over.|
